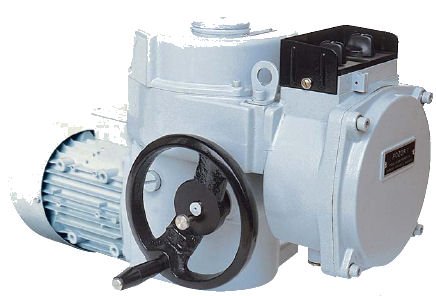

The MODACT ® MONJ actuators have been designed for changing position of control devices by reversing rotary motion (e.g. slide valves and other devices for which they are suitable in their characteristics). A typical example of application is remote two-position or multi-position control of devices which are required to close tight in their end positions.

Technical data

Type number520305203152032
Tripping force [kN]
Adjusting time [s/90°]
Position-changing velocity[min-1]25-5040-14540,80
Working stroke[°]
Supply voltage1x 230 V, 50 Hz
24 V, 50 Hz
1 x 110 V, 50 Hz
3 x 230 / 400 V, 50 Hz
ControlTwo position On-Off
Three position
Position sensingResistance transmitter (R)
Current transmitter (I)
Position interrupt
Torque-initated interrupt
Manual actuation
Explosion-proof design
Type of enclosureIP 55IP 55IP 55
Weight - depending on design (Al/cast iron) and on motor [kg]27-2841-5145-49


Depending on their design, the MODACT ® MONJ Control actuators can be fitted with a position regulator, reversing contactors, overcurrent motor protection and the BAM electronic brake. They can be used to adjust control devices working in control systems, depending on the value of analogue input signal of the position regulator. They can also be equipped with reversing contactors only or with reversing contactors and the BAM electronic brake.

Files for download:

3D Model 52030zip5.92 MB
3D Model 52031zip5.06 MB
